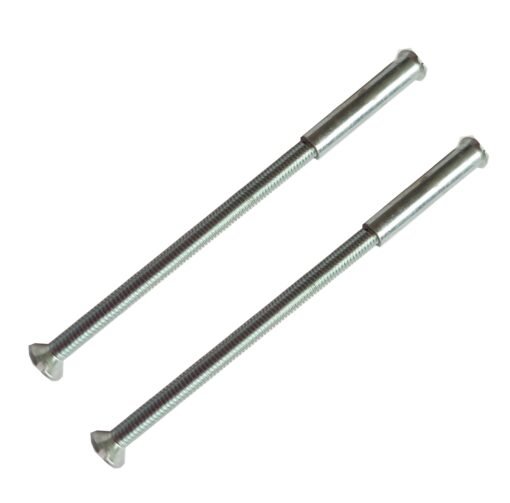

M3 SILVER SCREW CONNECTING BOLT WITH SLEEVES FOR DOOR HANDLES, ROSES, KNOBS and ESCUTCHEONS
Choice of Multipack and Color of M3 Connecting Screw with Sleeves
General Description for M3 Door Handles Connecting Screws
Used to fasten door handles, knobs, roses and escutcheons. These screws with sleeves are used to replace existing or damaged screws that attaches two handles together.
How to use: Drill a hole through the door leaf, place door handle on the door to match up with the hole drilled and push the screw trough the door handle, door leaf the handle on the other side. Attach the sleeve and tighten up. Follow these instructions for all 4 holes in the door handle. The result is a handle securely fixed with screws that cannot be pulled through.

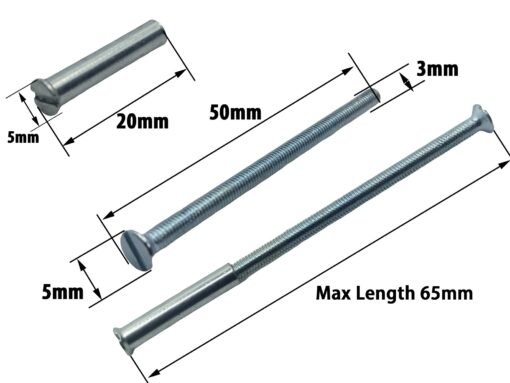

Item Description/Technical Data for
M3 no snap off screw
Both the sleeve and the screw has a slotted head.
Color: Brass or Chrome plated
Screw overall length: 50 mm
Screw diameter is 3mm
Sleeve overall length: 22.6 mm
Sleeve diameter: 4.75 mm
